Description of the Experiment

This experiment allows you to polarize light from an incoherent source (a white LED) using a polarizer and study the effect caused by a second polarizer on the same beam of light, ultimately measuring the incident power on a photocell.

Light can be described as an electromagnetic wave with a characteristic polarization, where its electric field oscillates in a specific plane perpendicular to the direction of its propagation. Certain media have the property of absorbing the wave in one direction on that plane and remaining "transparent" in the other direction, such as "Polaroid" lenses.

The aim of this experiment is to demonstrate the effect of light passing through various polarizers by interposing them in the light optical path at various angles defined by the user. However, when there are a chain of three polarizers, we the interpretation of the effect of the polarizers can be quantum, especially when dealing with a single photon.

Links

Who likes this idea

IYQST2025 IUPAP Logo.png LogoSPF long.jpg IUPAP Logo.png URSI Logo.png


Experimental Apparatus

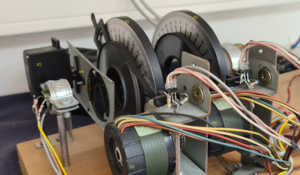

The apparatus consists on a light source (high bright white LED) passing a collimator, which focuses the light rays into a parallel beam of light. At the beginning of the optical path, a vertical light polariser can be interposed.

In the optical path, the light travels through two polarized lenses without graduation, having the angle of one of them been preset and being the other one free to rotate around the axis of propagation.

The light is finally collected through a converging lens into a photo-diode that measures the incident radiation intensity. This intensity is obviously the result of attenuation introduced by polarizing systems brought into its optical path.

Protocol

In this control room we can measure the attenuation of a light beam caused by the cross-rotation of two polarized lenses. This beam can be selected from the light source or can be previously polarized.

The supervisor of the experiment can choose two sweep limits for one polarizer and set the angle of the second polarizer acquiring the value of the transmitted power in a photo-diode.

The resolution (angle increment between two samples) can be chosen according to the interest of the control room supervisor.

Advanced protocol

The experience allows to be performed with starting with polarized light. Selecting this option the user can check the Malus's law in which multiple polarizers are used. In such case we need to multiply all the squares of the cosines between themselves, so the final value of the attenuation equation became:

[math] I_s = I_a \prod cos ^ 2 (\alpha_i) [/math]

were \( \alpha_i \) are the successive polarizers angles and \(I_a\) the initial light intensity.

In the case where two of the polarizers are at 90º, but the one between them is at an angle α, the sequential application of Malus' law leads to the following:

[math] I_s=I_a (cos (\alpha_i)cos(90-\alpha_i))^2=I_a (cos (\alpha_i)sen(\alpha_i))^2=\frac{I_a}{4}sen^2(2\alpha) [/math]

A paradox can arise from this, since if we have two polarizers at 90º no light will pass through, but by introducing a third polarizer at 45º between them we already get light through the system, which will emerge attenuated by 25%!

Nonetheless, the interpretation of this phenomenon of the "repolarization" of light necessarily has a quantum interpretation in the limit of a single photon.
